SMT or THT? How to Choose the Right PCB Technology for Your Next Project

In today's rapidly evolving electronics manufacturing landscape, Through-Hole Technology (THT) and Surface Mount Technology (SMT) represent two fundamental PCB assembly processes, each offering distinct advantages in different applications. This article provides an in-depth comparison of both technologies from technical principles, process characteristics, and industrial application perspectives, while exploring how hybrid assembly technology (SMT+THT) emerges as the optimal solution for high-reliability products.

I. Technical Principles and Process Evolution

1. THT: Reliability Through Mechanical Anchoring

THT establishes connections by inserting component leads into PCB through-holes followed by soldering. Its advantages include:

• Three-dimensional anchoring structure: Leads penetrate the board substrate, providing exceptional mechanical stress resistance
• Power handling superiority: Ideal for high-current, high-voltage components (e.g., transformers, relays)
• Repair accessibility: Through-hole solder joints facilitate straightforward inspection and rework

However, THT presents notable limitations:

• Low space utilization: Incompatible with high-density routing designs
• Automation constraints: Requires multiple process steps including insertion, board flipping, and soldering
• High-frequency limitations: Through-hole structures introduce parasitic inductance and capacitance

2. SMT: Revolution in Miniaturization and Speed

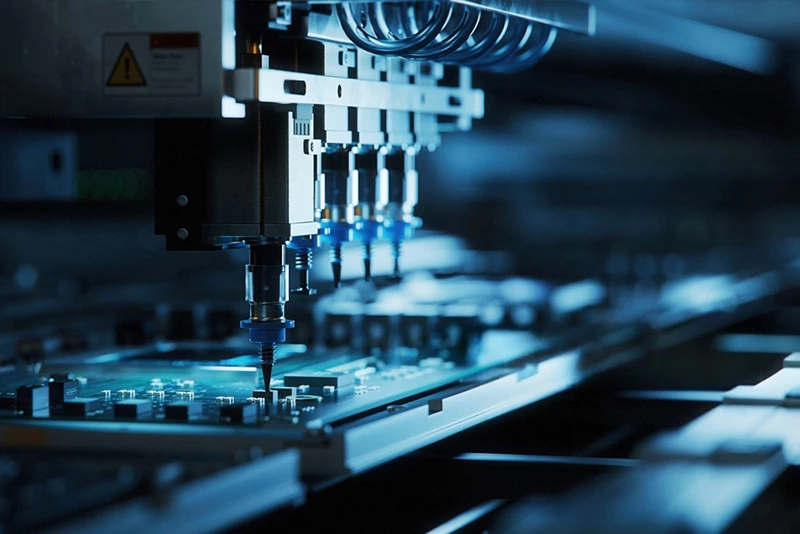

SMT utilizes solder paste printing, component placement, and reflow soldering for surface attachment. Key technological advancements include:

• Component miniaturization: Supports 01005 components and 0.3mm pitch BGAs
• Signal integrity optimization: Reduced lead lengths minimize high-frequency signal loss
• Full automation capability: Placement rates exceeding 100,000 components per hour

Nevertheless, SMT faces specific challenges:

• Solder joint mechanical vulnerability: Sensitive to vibration and shock stresses
• Thermal management complexity: Requires precise reflow temperature profile control
• Inspection and rework difficulties: Dependent on specialized equipment like X-Ray and AOI

II. Industrial Application Scenarios Comparison

III. Technology Selection Framework

We recommend comprehensive evaluation across four dimensions:

1. Electrical Performance Requirements

• High-frequency circuits (e.g., RF modules) favor SMT
• High-power circuits (e.g., power modules) benefit from THT

2. Environmental Compatibility

• Vibration-prone applications (e.g., automotive) suit hybrid approaches
• High-temperature/humidity environments require careful solder alloy selection

3. Cost-Efficiency Balance

• High-volume production leverages SMT's economies of scale
• Low-volume/high-mix production may justify THT's lower tooling costs

4. Supply Chain Considerations

• Odd-form component availability influences technology selection
• Special processes (e.g., gold-plated through-holes) require prior validation

IV. TECOO's Hybrid Process Innovations

Our three-phase methodology ensures successful technology integration:

1. DFM-Coordinated Design

• Implements microvia/blind via designs to minimize through-hole counts
• Incorporates thermal isolation zones around THT components

2. Staged Process Flow

• Executes SMT reflow preceding THT selective soldering
• Develops specialized solder formulations for mixed-assembly boards

3. Reliability Verification

• Implements interconnect stress testing (IST) and thermal cycling
• Utilizes scanning acoustic microscopy for interface defect analysis

V. Emerging Technology Trends

1. SMT Miniaturization Frontiers

• 01005 component placement accuracy achieving 15μm
• Low-temperature solders (LTS) enabling flexible substrate applications

2. THT Automation Renaissance

• Robotic vision insertion systems reaching 0.1mm accuracy
• Conductive adhesive through-hole filling replacing traditional plating

3. Heterogeneous Integration Pathways

• Embedded component PCB (ECP) technologies
• Fan-out wafer-level packaging with direct PCB interconnections

Conclusion

THT and SMT represent complementary rather than competing technologies, forming a synergistic spectrum in electronics manufacturing. Leveraging cross-process expertise, TECOO delivers scenario-optimized hybrid solutions that precisely balance reliability, cost, and performance objectives.

For application-specific technical recommendations, please contact our process engineering team for detailed consultation.
