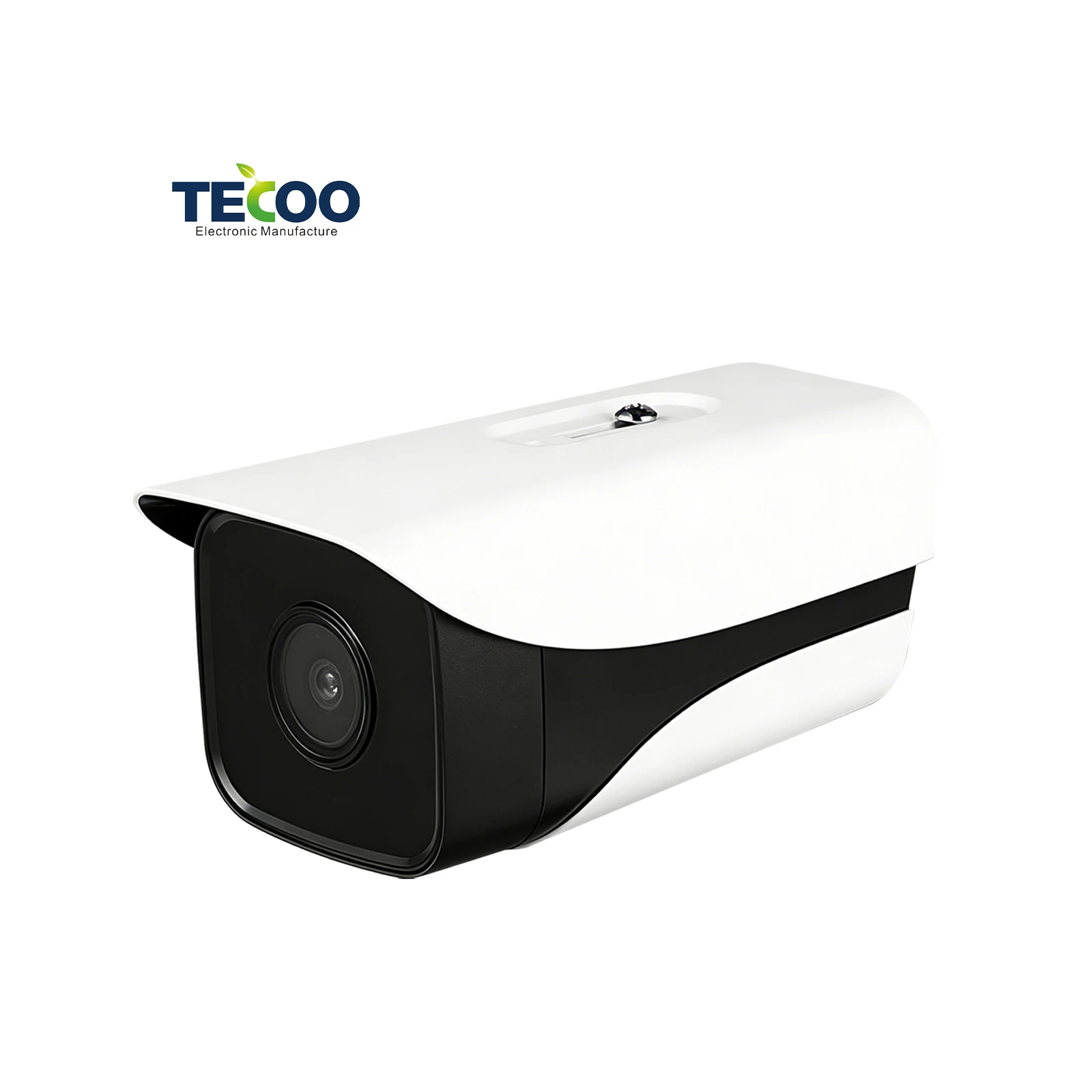

Smart Security Camera

The Smart Security Camera is an AI-powered surveillance solution designed for secure, intelligent, and efficient monitoring. Built on a self-developed RISC-V computing architecture, it combines advanced video encoding, hardware-level encryption, AI processing, and intelligent audio to meet the demands of government, finance, and enterprise security systems.

PCB AssemblyPCB Assembly
PCB AssemblyBox Building
PCB AssemblyQuick Response
PCB AssemblyFast Delivery

1. Advanced Multi-Codec Video Encoding

The camera supports AVS3, SVAC 3.0, H.264, H.265, and M-JPEG video codecs, delivering higher compression efficiency than conventional IP cameras. This reduces bandwidth usage and channel load while maintaining high image quality. AVS3 support also helps lower patent litigation risks in overseas markets, enhancing export competitiveness.

2. End-to-End Video Data Security

Compliant with GB35114 and GB/T 28181 public security standards, the Smart Security Camera integrates AES, SHA, ECC, and RSA encryption algorithms at the hardware level, along with a true random number generator (TRNG). This ensures full-chain protection of video data from capture to transmission and storage, making it suitable for sensitive environments such as government and financial institutions.

3. High-Performance AI Computing

Powered by a self-developed RISC-V processor and a proprietary RISC-V–based AI processor, the camera provides strong general computing and AI acceleration capabilities. Custom AI algorithms support a wide range of AI models and allow continuous algorithm upgrades, enabling intelligent functions such as detection, recognition, and event analysis.

4. Intelligent Audio Processing

The camera features in-house developed audio processing and audio codec algorithms, optimized for dual-microphone array designs. It delivers enhanced performance for intelligent voice interaction, audio preprocessing, sound enhancement, and smart control applications.

Typical Applications

  • Government and public security surveillance
  • Financial institutions and critical infrastructure
  • Smart cities and transportation systems
  • Intelligent, voice-enabled security solutions

Main Parameters

Main Performance BY-IPC-AI200PHFW/AI400PHFW
Max Resolution 2688x1520
Video Compression Standard H.265, H.264H,MJPEG,AVS3/SVAC3.0
Intelligent Coding H.264,Supports H.265, Supports AVS3/SVAC3.0
Video Frame Rate Max 1920x1080@30fps,Dual Stream:
Main Stream (2560x1440@20fps)/Sub Stream (704x576@20fps)
General Behavior Analysis Line Crossing, Region Intrusion, Fast Moving, Item Left Behind,Item Removal, Loitering Detection, Crowd Gathering,Parking Detection, Face Detection,People Counting
Access Standard ONVIF,GB/T28181,CG
Security Mode Authorized Username and Password,MAC Address Binding.HTTPS Encryption, GB35114 National Secret
Power Supply Mode DC12VIPoE
Standard Power Consumption 2.4W
Shell Material Metal + Plastic
Product Dimensions 185mmx85mmx92mm (LxWxH)
