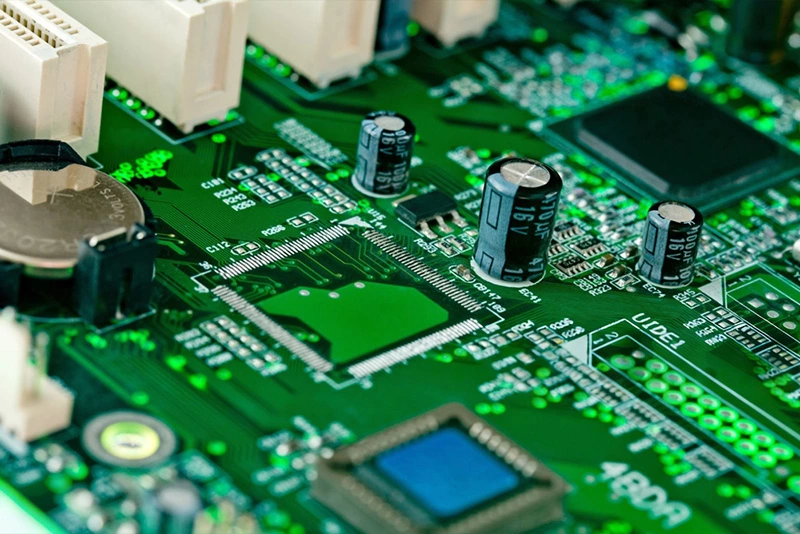

In modern surveillance systems, the core of CCTV equipment depends not only on chip solutions and product design but also on professional CCTV PCBA manufacturing, which transforms advanced components into stable, high-performance PCBAs that ensure reliable operation for security applications. TECOO, a leading electronics contract manufacturer, has over a decade of experience in security PCBA production, delivering more than 5 million CCTV-related PCBA to hundreds of security companies worldwide. Our expertise makes us a trusted manufacturing partner in the industry.

CCTV PCBA Requirements for High-Performance Security Systems

PCBA assembly for security and surveillance equipment presents unique challenges, requiring standards far beyond ordinary consumer electronics:

• 24/7 Continuous Operation Reliability: CCTV devices operate year-round, demanding exceptional soldering reliability, heat dissipation, and long-term stability.
• Complex Signal Integrity Management: High-definition video (HD/4K/8K) requires precise impedance control, shielding, and anti-interference design.
• Harsh Environment Adaptability: PCBAs must perform reliably in extreme conditions, from -40℃ outdoors to +85℃ heat.
• High-Density Assembly Requirements: Modern CCTV products integrate AI processing, multiple sensors, and network modules, requiring compact and complex assembly processes.
• Long-Term Supply Consistency: Security products often have 5–8 year lifecycles, necessitating consistent manufacturing processes and supply chain stability.

TECOO Advantages in High-Quality CCTV PCBA Manufacturing

Professional SMT Production Line for Security Products

• High-Precision Placement: FUJI NXT series machines handle 01005 components, 0.3mm pitch BGA, QFN, and other complex packages.
• Mixed Technology Dedicated Line: Supports through-hole + surface mount technology (SMT) via selective wave soldering and manual soldering.
• Precision Stencil & Printing: Stepped stencils and nano-coating ensure uniform solder paste for fine-pitch video processing chips.
• Heat Dissipation Solutions: Integrated processes include underfill, thermal paste, and heat sinks for sensitive components.

Security-Grade Quality Control System

• Full Traceability: Every PCBA is traceable from material warehousing to shipment, including batch, process, and test data.
• Four-Stage Testing: SPI solder paste inspection (±1μm), AOI (>99.9% coverage), X-ray for hidden joints, and functional 72-hour aging test.
• Environmental Stress Screening: High/low temperature cycling (-40℃~+85℃), humidity, heat, and vibration testing.
• Failure Analysis & Prevention: Dedicated labs for PCBA cross-section, SEM/EDS material analysis to solve root quality issues.

Extensive Industry Experience in CCTV PCBA

• Mainstream Security Chips: HiSilicon, Ambarella, TI, NXP.
• Video Signal Integrity: Minimize reflection, crosstalk, and EMI via optimized processes.
• Night Vision & Infrared Technology: Expertise in IR-CUT filter drivers and infrared fill light circuits.
• Network & Wireless Module Integration: PoE, Wi-Fi/4G/5G RF circuit assembly and shielding.
• Long-Term Supply: Dedicated security material reserve ensures continuous supply for over 5 years.

Smart Factory & Flexible Production

• MES Intelligent Management: Real-time monitoring of production, process, and quality data.
• Flexible Production Lines: Seamless scaling from 50-piece prototypes to 100,000-piece mass production.
• Rapid Response: 72-hour delivery for urgent orders; 48-hour response to engineering changes.
• Global Production Layout: China base plus overseas partners to meet regional supply chain needs.

Comprehensive CCTV PCBA Manufacturing Services for Security Systems

Camera Core Board Assembly

• High-definition network camera motherboards (4K/8K)
• Analog camera signal processing boards
• AI intelligent analysis camera boards
• Panoramic multi-sensor camera PCBA

Backend Equipment PCBA

• DVR/NVR motherboards (multi-channel video processing)
• Video decoder/encoder boards
• Network video storage server motherboards

Supporting Module PCBA

• PoE power supply modules (IEEE 802.3af/at/bt compliant)
• PTZ control boards (precision motor drive)
• Infrared fill light control boards
• Audio intercom modules

Special Application PCBA

• Explosion-proof camera PCBA
• Vehicle-mounted monitoring equipment PCBA
• Solar wireless monitoring system PCBA

Customer Success Stories: Reliable CCTV PCBA Manufacturing

High-End AI Camera Project: An international security company faced low yield with 0.35mm pitch BGA chips. TECOO optimized reflow soldering, developed dedicated fixtures, and adjusted solder paste formulas—raising yield from 86% to 99.7% and saving 15% in manufacturing costs.

Extreme Environment Outdoor Camera: Outdoor camera manufacturer experienced video signal loss in cold temperatures. TECOO optimized component layout, welding process, and stress buffer design—resolving stability issues at -40℃.

Rapid Mass Production Support: A startup needed to scale from prototypes to tens of thousands of units in 3 months. TECOO provided DFM optimization, rapid prototyping, and mass production ramp-up, enabling on-time CES exhibition participation and initial order success.

Future-Focused CCTV PCBA Solutions for Advanced Security Systems

• Advanced Packaging: Chiplet and SiP assembly processes.
• High-Frequency / High-Speed Signal Processing: 5G & Wi-Fi 6E interfaces.
• Miniaturization Assembly: Ultra-compact PCBAs for consumer-grade security devices.
• Green Manufacturing: RoHS 3.0 and halogen-free compliance.
• Digital Quality Prediction: AI-driven predictive control of quality issues.

Why TECOO is Your Trusted CCTV PCBA Manufacturing Partner

• Deep Process Expertise: Targeted solutions for security PCBA production.
• End-to-End Responsibility: Full accountability from materials to final testing.
• Continuous Cost Optimization: Reduce total ownership costs via process and supply chain improvements.
• Intellectual Property Protection: Strict confidentiality and physical isolation measures.
• Rapid Response Support: 24/7 technical support from local engineering teams.

In today's competitive security market, outstanding design alone is insufficient. TECOO's professional CCTV PCBA manufacturing capabilities turn your innovative designs into stable, high-quality, production-ready products, helping safeguard security worldwide.

Ready to enhance your security products with reliable CCTV PCBAs? Contact TECOO today to transform your designs into high-performance, production-ready PCBAs for cameras, DVR/NVR systems, and smart monitoring solutions.
